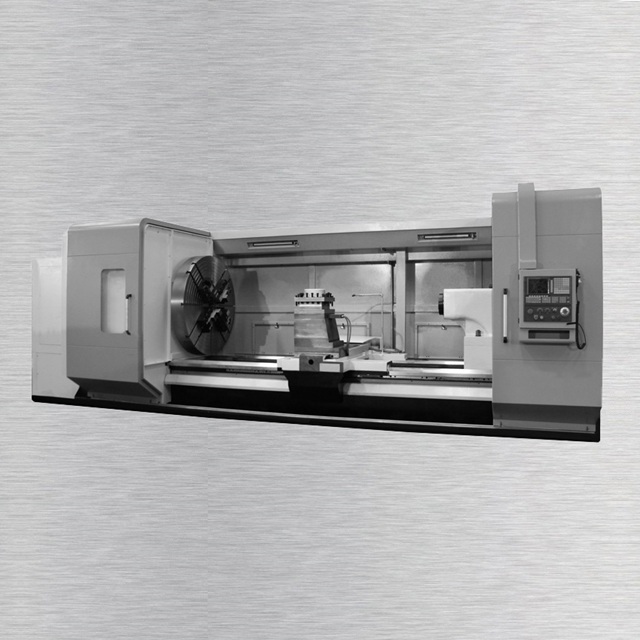

Heavy Duty CNC Lathe
15 Tons
1700 mm
18000 mm
37 KW
130 mm
Main Feature
Convincing Arguments : Quality, Efficiency and Price
Maximum Load Work-piece Weight is 15 Tons
Maximum Swing Over Bed is up Ø 1700 mm
Solid Guideway Width is 1100 mm
CNC Controlled Lathe Machine perfect for Heavy industry
Large Spindle Bore diameter up to Ø 130 mm
4-position Electrical Tool-Post as standard included
Easy Operation and Conveniently Maintenance
Longitudinal feed and Cross feeds by servo motor drive through ball screws
Maintenance-friendly protective housing
Central Lubrication System
Motorized Tailstock
High-quality preloaded ball screws
Braced machine bed made from grey cast-iron
High precision frequency hardened guide-ways ensure more precision and longer working life
Complex spindle bearing
Safety Sliding Doors
Hardened and ground slide ways
Precise machining and central lubrication
Powerful 37 KW main motor as standard included
SIEMENS or FANUC or GSK or FAGOR CNC Control System is optional
Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data
Product Name : | Heavy Duty CNC Lathe Machine | ||||
Product Item : | DLE–CNC 1300A | DLE–CNC 1500A | DLE–CNC 1700A | DLE–CNC 1900A | DLE–CNC 2100A |
Bed Type : | Flat Bed | Flat Bed | Flat Bed | Flat Bed | Flat Bed |
Maximum Load Work-piece : | 15 Tons | 15 Tons | 15 Tons | 15 Tons | 15 Tons |
Bed Width : | 1100 mm | 1100 mm | 1100 mm | 1100 mm | 1100 mm |
Machine Data | |||||
Maximum Swing Over Bed : | Ø 1300 mm | Ø 1500 mm | Ø 1700 mm | Ø 1900 mm | Ø 2100 mm |
Max. Swing Over Cross Slide : | Ø 850 mm | Ø 1050 mm | Ø 1250 mm | Ø 1450 mm | Ø 1650 mm |
Distance Between Centers : | 3000 /4000 /5000 /6000 /8000 /10000 /12000 /16000 /18000 mm | ||||
Maximum Cutting Length : | 2800 /3800 /4800 /5800 /7800 / 9800 /11800 /15800 /17800 mm | ||||
Headstock | |||||
Spindle Bore : | Ø 130 mm | ||||
Spindle Taper : | Metric 140 | ||||
Spindle Speed : | 2 — 200 RPM | ||||
Spindle Speed Steps : | 4 steps | ||||
Tooling Turret | |||||
Tool Post Station : | 4-Station Electric Turret (6 or 8-station is Optional) | ||||
Max. Size of Tool Shank : | 50 X 50 mm | ||||
Travel | |||||
Max. Travel X-axis : | 650 mm | 750 mm | 750 mm | 850 mm | 850 mm |
Max. Travel Z-axis : | 2850 /3850 /4850 /5850 /7850 / 9850 /11850 /15850 /17850 mm | ||||
Rapid Feed X-axis : | 4000 mm /min | ||||
Rapid Feed Z-axis : | 6000 mm /min | ||||
Tailstock | |||||
Tailstock Taper : | Metric 80 | ||||
Tailstock Quill Diameter : | Ø 260 mm | ||||
Tailstock Quill Stroke : | 300 mm | ||||
Working Precision | |||||
Workpiece Accuracy : | IT 6 – 7 | ||||
Surface Roughness : | Ra 2.5 – 3.2 μm | ||||
Drive Capacity | |||||
Main Motor : | 37 KW | ||||
Packing Type : | Export Type | ||||
Gross Weight : | 27850 KGS ( For DLE–CNC 2100A X 8000 ) | ||||
Packing Size : | 12750 X 2290 X 2580 mm ( For DLE–CNC 2100A X 8000 ) | ||||
Standard Accessory : | CNC Control System, 4-Jaw Lathe Chuck, 4-Position Electrical Turret, Lubrication System, Coolant System, Machine Lamp, Tools and Toolbox | ||||
