Slant-Bed-CNC-Lathe-from-MAXNOVO-MACHINE

You are here: Home » Products » CNC Lathe » Slant Bed CNC Lathe

Slant Bed CNC Lathe

  • MM-LabTurn 2028
    Type: Slant Bed CNC Mini Lathe
    Controller: SIEMENS
    Max.Swing Over Bed: 200 mm
    Distance Between Center : 280 mm
    Spindle Bore : 20 mm
    Main Motor: 1 KW
    Add to Basket

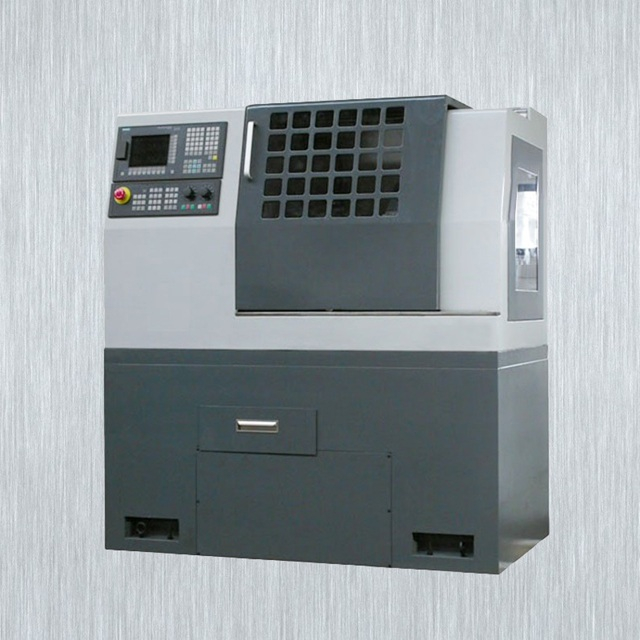

  • MM-S300
    Type: Slant Bed CNC Bench Lathe
    Controller: SIEMENS
    Max.Swing Over Bed: 300 mm
    Distance Between Center : 400 mm
    Spindle Bore : 20 mm
    Main Motor: 1.5 KW
    Add to Basket
  • MM-S360E
    Type: Slant Bed CNC Lathe Machine
    Controller: SIEMENS / FANUC / GSK
    Max.Swing Over Bed: 360 mm
    Distance Between Center : 750 mm
    Spindle Bore : 66 mm
    Main Motor: 5.5 KW
    Add to Basket
  • MM-S400E
    Type: Slant Bed CNC Lathe Machine
    Controller: SIEMENS / FANUC / GSK
    Max.Swing Over Bed: 400 mm
    Distance Between Center : 750 mm
    Spindle Bore : 66 mm
    Main Motor: 7.5 KW
    Add to Basket
  • MM-S510
    Type: Slant Bed CNC Lathe Machine
    Controller: SIEMENS / FANUC / GSK
    Max.Swing Over Bed: 510 MM
    Distance Between Center : 500 MM
    Spindle Bore : 66 mm
    Main Motor: 15 KW
    Add to Basket
  • MM-S560
    Type: Slant Bed CNC Lathe Machine
    Controller: SIEMENS / FANUC / GSK
    Max.Swing Over Bed: 560 mm
    Distance Between Center : 1000 mm
    Spindle Bore : 87 mm
    Main Motor: 18.5 KW
    Add to Basket

FAQ

  • 1. What are the two basic types of CNC Lathe ?

    There are two main types of CNC Lathe Machine in the industry which includes CNC Flat Bed Lathe and CNC Slant Bed Lathe.
  • 2. What are the Advantages of Slant-Bed CNC Lathe ?

    The Slant-Bed CNC Lathes are widely used in various industries, including aerospace, automotive, medical, and precision manufacturing. This slant-bed design encourages chips generated during machining to move away from the work-piece more efficiently. It reduces the risk of chip buildup, chip entanglement with the work-piece, and potential tool damage. It also simplifies chip evacuation, enhancing overall machining efficiency. It also provides excellent tool access to different areas of the work-piece. The angle of the tool approach allows for efficient machining of features requiring inclined surfaces, tapers, and turned contours. This versatility makes them suitable for complex and multi-feature parts.
  • 3. What is Slant-Bed CNC Lathe ?

    The Slant-Bed CNC Lathe, often referred to as Slant-Bed Lathe or Slant-Bed Turning Center, is a type of computer numerically controlled (CNC) lathe machine used for precision machining of cylindrical work-pieces. It is characterized by its slanted bed structure, where the bed is inclined at an angle, typically around 30 to 45 degrees, relative to the horizontal plane.
