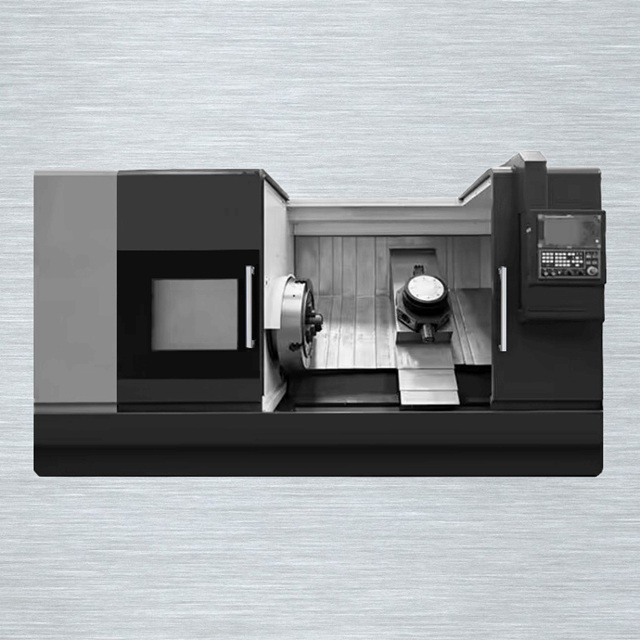

Slant Bed CNC Oil Country Lathe
SIEMENS / FANUC / GSK
800 mm
600 mm
30 KW
355 mm
Main Feature
Convincing Arguments: Quality, Efficiency and Price
Maximum Swing Over Bed is 800 mm
Large Spindle Bore of 355 mm
Heavy machine frame with inclined bed ensuring high rigidity and easy chip removal
Pipe Threading Range is from 50 to 340 mm
8-station Tool Turret ensures quick and precise tool changes
Rigid guideways are inductively hardened and grounded
Siemens 828D CNC Control System meets all requirements for advanced control technology
Electrical Type 4-Jaw Lathe Chuck is Standard included
Chip Conveyor is Standard included
Powerful 30KW Main Motor is Standard included
Pneumatic Type 3-Jaw Lathe Chuck is Optional
FANUC or GSK CNC Control System is Optional
Various applications in general machine construction, production, single part manufacturing etc
Connecting Voltage is Three Phase 400V
Certificate of Original (CO, EAC, FORM A, FORM E, FORM F)
Technical Data
Product Name : | Heavy Duty CNC Pipe Threading Lathe Machine |
Product Item : | MM-RPP 355 |
CNC Control System : | SIEMENS 828D |
Bed Type : | Slant Bed |
Angled Bed : | 45 degrees |
Spindle Bore : | Ø 355 mm |
Max. diameter of Through Hole : | Ø 345 mm |
Maximum Swing over Bed : | Ø 800 mm |
Max. Swing over Cross Slide : | Ø 720 mm |
Distance Between Centers : | 600 mm |
Pipe Threading Range : | Ø 50 — 340 mm |
Max. Machining Workpiece Length : | 600 mm |
External Cylindrical Turning Max. Length : | 150 mm |
Headstock | |
Spindle Speed Range : | 90 — 350 RPM |
Lathe Chuck Diameter : | Ø 780 mm |
Lathe Chuck Type : | 4-Jaw Chuck (Electrical Type) |
Travels | |
X-axis Travel : | 400 mm |
Z-axis Travel : | 900 mm |
Rapid Feed X-axis : | 4000 mm / min |
Rapid Feed Z-axis : | 6000 mm / min |
Tooling | |
Tool Post Type : | 6-station (Automatic Type) |
Tool Shank Dimensions : | 40 X 40 mm |
Tailstock | |
Tailstock Type : | Don't need to use Tailstock |
Drive Capacity | |
Main Motor : | 30 KW |
Gross Weight : | 12580 KGS |
Packing Size : | 6580 X 2810 X 2780 mm ieces of tool station : e |
Standard Accessory : | SIEMENS 828D CNC Control System, Chip Conveyor, Lathe Chuck (two units), 6-station Turret, Coolant System, Machine Lamp, Lubrication System, Tools and Tool box |
