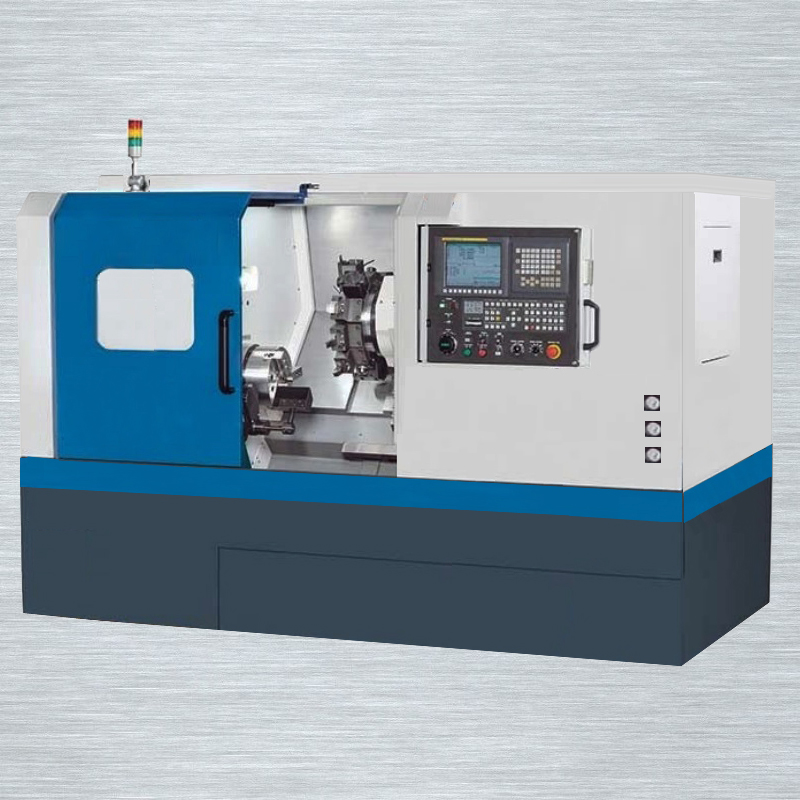

Slant Bed CNC Lathe Machine
SIEMENS / FANUC / GSK
400 mm
750 mm
7.5 KW
66 mm
Main Feature
Convincing Arguments: Quality, Efficiency and Price
Maximum Swing Over Bed 400 mm and Distance Between Centers is 750 mm
Sloping Bed design for particularly large machining diameter
Heavy machine frame with inclined bed ensuring high rigidity
Precise Linear Guides in X-axes and Z-axes for high stability and accuracy even at highest loads
Compact design
8-station tool turret ensures a large work area for quick and precise tool changes
Hydraulic 3-Jaw Lathe Chuck
Tailstock with hydraulically operated quill for maximum stroke
Hardened and polished ball screw spindles
Central lubrication system ensures reliable lubrication of guide-ways
A powerful headstock main motor delivers high torque across the entire speed range
SIEMENS Control System meets all requirements for advanced control technology
All axes with SIEMENS servo motor
Portable Electronic Hand-wheel substantially facilitates running in programs
Dimensionally stable Linear Guides ensure a Long Service Life
The enclosed work space is easily accessible through a large sliding door
EMC Electromagnetic compatibility
Connecting voltage is Three Phase 400V
Certificate of Original (CO, FORM A, FORM E, FORM F)
Solid Design Complete One-piece Casting Body
Technical Data
Product Name : | High Precision Slant Bed CNC Lathe Machine | |
Product Item : | MM-S400E X 500 | MM-S400E X 750 |
Bed Type : | Slant Bed | Slant Bed |
Angled Bed : | 45 degree | 45 degree |
Guide-way Type : | Linear Guide-ways for all axes | Linear Guide-ways for all axes |
Machine Data | ||
Max. Swing over Bed : | Ø 400 mm | Ø 400 mm |
Distance Between Centers : | 500 mm | 750 mm |
Max. Work-pieces Length : | 500 mm | 750 mm |
Swing over Cross Slide : | Ø 260 mm | Ø 260 mm |
Center Height : | 125 mm | 125 mm |
Headstock | ||
Spindle Bore : | Ø 66 mm | Ø 66 mm |
Spindle Nose : | A2-6 | A2-6 |
Lathe Chuck Diameter : | Ø 200 mm (Hydraulic Type) | Ø 200 mm (Hydraulic Type) |
Spindle Speed : | 40 -- 4000 RPM | 40 -- 4000 RPM |
Nos. of Tool Position : | 8-station (Hydraulic Type) | 8-station (Hydraulic Type) |
Max. Size of Tool Post : | 25 X 25 mm | 25 X 25 mm |
Travel | ||
X-Axes Travel : | 240 mm | 240 mm |
Z-Axes Travel : | 500 mm | 750 mm |
Rapid Feed of X-Axes /Z-axes : | 15000 / 15000 mm /min | 15000 / 15000 mm /min |
Feed Motor of X /Z-Axes : | 10 Nm / 10 Nm | 10 Nm / 10 Nm |
Tailstock | ||
Tailstock Taper : | MT 5 (Hydraulic Type) | MT 5 (Hydraulic Type) |
Tailstock Quill Diameter : | Ø 75 mm | Ø 75 mm |
Tailstock Quill Stroke : | 80 mm | 80 mm |
Precision | ||
Positioning Accuracy : | ± 0.010 mm | ± 0.010 mm |
Repeatability Accuracy : | ± 0.006 mm | ± 0.006 mm |
Drive Capacity | ||
Main Motor : | 7500W (Optional 11KW) | 7500W (Optional 11KW) |
Connection Voltage : | Three Phase 400V voltage | Three Phase 400V voltage |
Gross Weight : | 3850 KGS | 4180 KGS |
Packing Size : | 3080 X 2000 X 2280 mm | 3580 X 2000 X 2280 mm |
Standard Accessory : | SIEMENS CNC Control System, Linear Guide-ways, Machine Lamp, 3-Jaw Hydraulic Chuck, 8-station Hydraulic Tool Turret, Hydraulic Tailstock, Lubrication System, Tools and Tool-box | |
