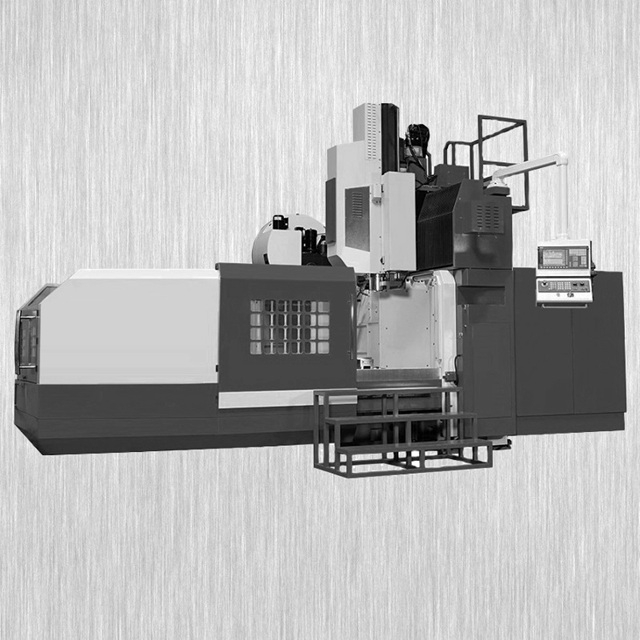

Heavy Duty MM-FP3022 Double Column CNC Gantry Machining Center with Fixed Gantry and Movable Work Table 3000X1800 mm, ideal for Precision Machining of Large Workpiece up to 10 Tons

Excellent Precision, Solid Design, Effectiveness and Efficiency

• Movable Work Table and Fixed Gantry allow Machining of Large Heavy Work-pieces

• Double-Column Structure Ensures Stable Precision and Rigidity

• Rigid Work Table 3000 X 1800 mm and Maximum Loading Capacity 10 Tons

• Maximum Travel for X-/Y-/Z-axis is 3200 /2500 /1000 mm

• Roller Type Linear Guides in X-/Y-axis and Rectangular Guides in Z-axis ensures precision

• Perfect Structures and Rugged Design Guarantee best Rigidity and Stability

• All Guide Rails are Tempered and Ground (HRC 50)

• Larger Working Area

• Rigid Fixed Portal

• Higher Workpiece Weight

• Quick-action Tool Changer

• Generously dimensioned Guides on the X, Y and Z axes

• The X- and Y-axis are equipped with Roller Linear Guides so that these axes can move with the highest precision even at high speed

• The Highest Machining Accuracy and High Damping due to wide Box way guides of the Z-axes for high machining performance with high spindle output torque

• Hardened and Precision Ground Ball Screws Mounted in high precision bearings in all three axes for high rapid traverse speeds

• High quality MEEHANITE cast iron for main components - machine bed, worktable, column and etc

• Double Column Structure ideal for Heavy-duty Machining and Maintains Good Rigidity

• Large Sliding Doors in the machine enclosure for great accessibility and easy tooling

• Combination of Linear Guides and Box Way ensures Long Service Life and Excellent Rigidity

• 24-Station Automatic Tool Changer is included

• FANUC and SIEMENS CNC Control System is Optional

• Certificate of Original (CO, FORM A, FORM E, FORM F)
