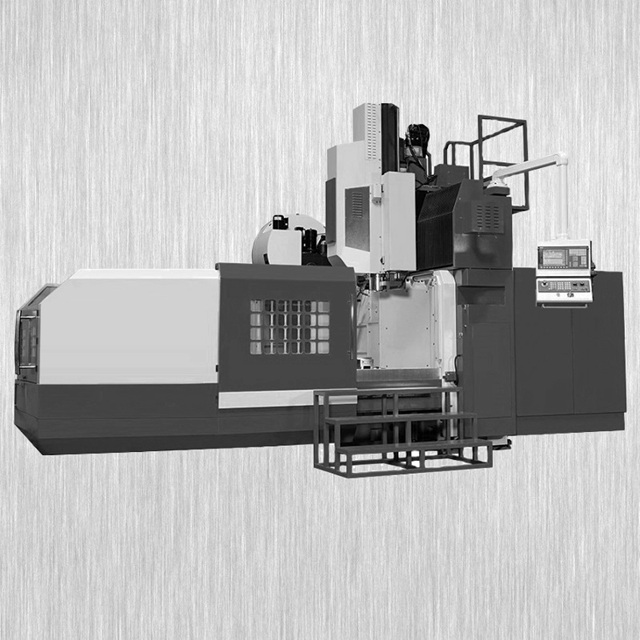

CNC Gantry Machining Center
4000 X 1800 mm
4200 mm
2500 mm
1000 mm
12000 KGS
Main Feature
Excellent Precision, Solid Design, Effectiveness and Efficiency
Movable Work Table and Fixed Gantry allow Machining of Large Heavy Work-pieces
Double-Column Structure Ensures Stable Precision and Rigidity
Rigid Work Table 4000 X 1800 mm and Maximum Loading Capacity 12 Tons
Maximum Travel for X-/Y-/Z-axis is 4200 /2500 /1000 mm
Roller Type Linear Guides in X-/Y-axis and Rectangular Guides in Z-axis ensures precision
Perfect Structures and Rugged Design Guarantee best Rigidity and Stability
All Guide Rails are Tempered and Ground (HRC 50)
Double Column Structure ideal for Heavy-duty Machining and Maintains Good Rigidity
Large Sliding Doors in the machine enclosure for great accessibility and easy tooling
Combination of Linear Guides and Box Way ensures Long Service Life and Excellent Rigidity
Larger Working Area
Rigid Fixed Portal
Higher Workpiece Weight
Quick-action Tool Changer
Generously dimensioned Guides on the X, Y and Z axes
The X- and Y-axis are equipped with Roller Linear Guides so that these axes can move with the highest precision even at high speed
The Highest Machining Accuracy and High Damping due to wide Box way guides of the Z-axes for high machining performance with high spindle output torque
Hardened and Precision Ground Ball Screws Mounted in high precision bearings in all three axes for high rapid traverse speeds
High quality MEEHANITE cast iron for main components - machine bed, worktable, column and etc
24-Station Automatic Tool Changer is included
FANUC and SIEMENS CNC Control System is Optional
Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data
Product Name : | Heavy Duty CNC Gantry Type Milling Machining Center | |
Product Item : | MM- FP4022 | MM- FP4030 |
Guide-way Type : | Roller Type Linear Guides for X-axis and Y-axis Box Guide-ways for Z-axis | |
Control System : | FANUC Oi-MF | FANUC Oi-MF |
Working Area | ||
Table Size : | 4000 X 1800 mm | 4000 X 2200 mm |
Maximum Load Capacity of Table : | 12000 KGS | 15000 KGS |
Max. Travel of X-axis : | 4200 mm | 4200 mm |
Max. Travel of Y-axis : | 2500 mm | 3150 mm |
Max. Travel of Z-axis : | 1000 mm | 1000 mm |
Distance from Spindle nose to Table surface : | 200 — 1200 mm | 250 — 1250 mm |
Distance Between Stand Columns : | 2200 mm | 3000 mm |
T-slot Size (No./width/spacing) : | 9 pieces X 28 X 180 mm | 11 pieces X 28 X 200 mm |
Headstock | ||
Spindle Taper : | BT 50 | BT 50 |
Spindle Speed : | 6000 RPM | 6000 RPM |
Tool Changer | ||
Tool Changer Type : | Disc Type ATC | Disc Type ATC |
Number of Tool Stations : | 24 Tools | 24 Tools |
Feed Speed | ||
Rapid Feed of X-axis : | 12000 mm/min | 10000 mm/min |
Rapid Feed of Y-axis : | 12000 mm/min | 12000 mm/min |
Rapid Feed of Z-axis : | 10000 mm/min | 10000 mm/min |
Work Feed Speed (X-/Y-/Z-axis) : | 8000/ 8000/ 8000 mm/min | 8000/ 8000/ 8000 mm/min |
Accuracy | ||
Positioning Accuracy : | ± 0.005 mm | ± 0.005 mm |
Repeatability Accuracy : | ± 0.005 mm | ± 0.005 mm |
Drive Capacity | ||
Main Motor : | 22 KW | 22 KW |
Gross Weight : | 35810 KGS | 45980 KGS |
Machine Size : | 10500 X 5250 X 5350 mm | 10600 X 5850 X 5650 mm |
Standard Accessory : | FANUC Oi-MF CNC Control System, Chip Conveyor, 24-station Automatic Tool Changer, Coolant system, Work Lamp, Tools and Toolbox | |
