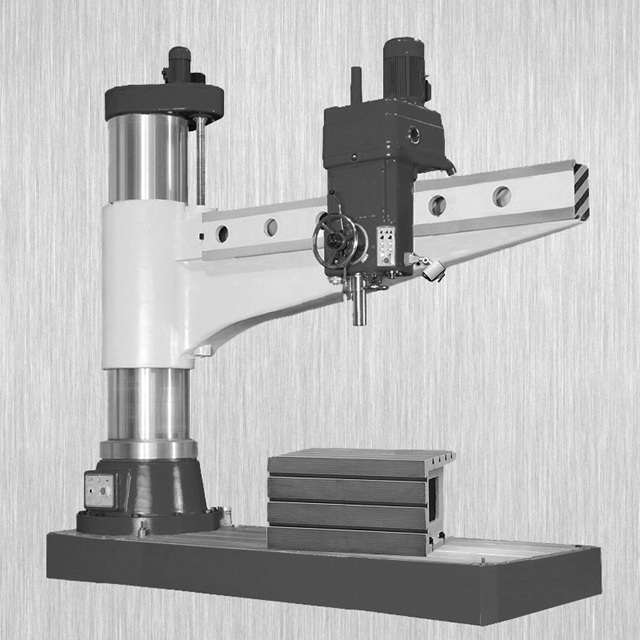

Heavy Radial Drilling Machine
1250 X 800 X 560 mm
100 mm
1000 RPM
600 mm
15 KW
Main Feature
Convincing Arguments: Quality, Efficiency and Price
Max. Drilling Capacity Diameter Ø 100 mm and Heavy-Duty Large Solid Column
Base, column, boom and gear head are made of premium high-quality cast
Major design features include a large column and a highly torsion-resistant boom
Boom height adjustment via a powerful motorized drive and vertical spindle
The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
A large throat and high boring capacities are supported by a very rigid structural design, without compromising the ease of handling and smoothness of operation
The drill head features a rigid design with motorized or manual movement
Spindle speed and feed velocity are hydraulically controlled for easy and safety operation
The drill spindle is driven by a multi-disk reversing clutch to avoid excessive load peak easy operation
Independent hydraulic clamping of head, column and boom
Drill head and column can be clamped/released together or separately and controlled via push button
Boom and column are oiled through a reliable central lubrication system
Drill head and column can be clamped / released together or separately, controlled via push button
Boom and column are oiled through a reliable central lubrication system
Advanced column swivel design with optimized clamping features rigidity and clamping offset
Main spindle runs on precision bearings and features an automatic spindle brake
Oversize base plate, ideal for processing of large work-pieces
All gear parts are lubricated reliably via oil pump
Gears feature hardened precision-ground chrome-nickel steel gears for smooth low-noise operation
The drill head moves on hardened and ground guide-ways
All operator controls are placed within reach for convenient and practical handling and quick learning
Swivel axis and travel axis feature extremely smooth operation make everyday production work easier
Powerful coolant system with coolant reservoir integrated into the machine foot
Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data
Product Name : | Heavy duty Radial Drilling Machine |
Product Item : | MM-R100 |
Max. Drilling Capacity (in steel) : | Ø 100 mm |
Max. Drilling Capacity (in cast iron) : | Ø 115 mm |
Max. Tapping Capacity (in cast iron) : | M 80 |
Max. Tapping Capacity (in steel) : | M 70 |
Clamping Type : | Hydraulic |
Drilling Depth (max.): | 500 mm |
Working Area | |
Working Table Size (L X W X H) : | 1250 X 800 X 560 mm |
Distance Spindle-to-Column Surface (Throat) : | 570 — 3150 mm |
Distance Spindle nose-to-table Surface : | 700 — 2500 mm |
Travel of Spindle Headstock : (Drill Head Horizontal Travel) | 2590 mm |
Arm Stroke Vertically : (Vertical Travel of Arm on Column ) | 1300 mm |
Spindle Travel : | 500 mm |
Maximum Torque of Spindle : | 2500 Nm |
Column Diameter : | Ø 600 mm |
Rotation Angle of Rocker Arm : | ± 180 degree |
Headstock | |
Spindle Speed Range : | 8 — 1000 RPM |
Spindle Speed Steps : | 22 steps |
Spindle Mount : | MT6 |
Feed | |
Spindle Feed Range : | 0.06 — 3.2 mm / rev |
Spindle Feed Steps : | 16 steps |
Drive Capacity | |
Main Motor : | 15 KW |
Lifting Motor : | 4 KW |
Connecting Voltage : | Three Phase 400V |
Packing Type : | Two unit of Export Type Wooden Case |
Machine Dimensions : | 4780 X 1630 X 4720 mm |
Packing Size : | 4850 X 1950 X 1820 mm 5000 X 1860 X 2580 mm |
Gross Weight : | 20000 KGS |
Standard Accessory : | Coolant system, Working Table, Work Lamp, Main Motor, Lifting Motor, Tools and Toolbox |
