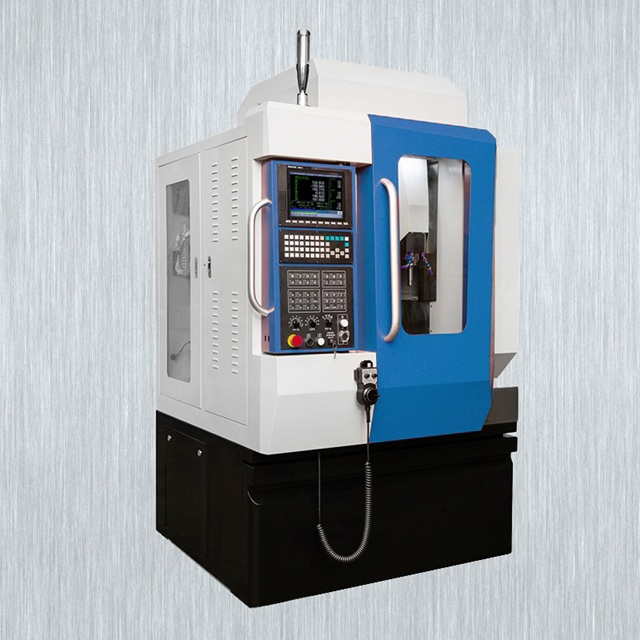

5-Axis Machining Center
SIEMENS / GSK
240 mm
240 mm
390 mm
280 mm
3 KW
Main Feature
Convincing Arguments : Quality, Efficiency and Price
Simultaneous 5-Axis Machining
Motorized Spindle Speed up to 24000 RPM
Automatic Tool Changer (ATC) with 12-Stations
Tool Setting Probe is standard included
Cradle Type Rotary Working Table
Compact Size Design
High Precision Linear Guides on Three Axes (X/Y/Z-axes)
Completely Enclosed Workspace
High Performance Ball Screws on Three Axes (X/Y/Z-axes)
C-axis and A-axis with motor drive for excellent lifetime accuracy
Rotated Tool Center Point
High Rigidity of Machine Body
Connecting voltage is Three Phase 400V
SIEMENS or GSK or SYNTEC or HNC Control System is Optional
Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data
Product Name : | High Precision 5-Axis Simultaneous Machining Center |
Product Item : | MM-FU 240 |
Control System : | SIEMENS or GSK or SYNTEC or HNC |
Machine Data | |
Table Size : | Ø 240 mm |
Table Load Capacity : | 30 KGS |
Spindle Speed : | 24000 RPM |
Spindle Taper : | ISO 20 |
Travels | |
X-axis Travel : | 240 mm |
Y-axis Travel : | 390 mm |
Z-axis Travel : | 280 mm |
A-axis Rotating Swivel Angle : | -110 to +110 degree |
C-axis Rotating Swivel Angle : | 360 degree |
Feed | |
Rapid Feed (X /Y /Z-axis) : | 10000 / 10000 / 10000 mm /min |
Max. Rotating Speed (A-axis) : | 25 RPM |
Max. Rotating Speed (C-axis) : | 30 RPM |
Precision | |
Positioning Accuracy (X /Y /Z-axis) : | 0.01 mm |
Positioning Accuracy (A /C-axis) : | 30 sec |
Repeating Accuracy (X /Y /Z-axis) : | 0.005 mm |
Repeating Accuracy (A /C-axis) : | 20 sec |
Automatic Tool Changer (ATC) | |
Number of Tools : | 12 Tools (ATC) |
Tool Length : | 100 mm |
Max. Tool Weight : | 1.5 KGS |
Drive Capacity | |
Main Motor : | 3000 W |
Connect Voltage : | Three Phase 400V |
Gross Weight : | 1650 KGS |
Packing Size : | 1650 X 1550 X 2300 mm |
Standard Accessory : | CNC Control System, Automatic Tool Changer, Electronic Hand-wheel, Tool-Holder, Machine Lamp, Tools and Tool-box |
