Product  Item :

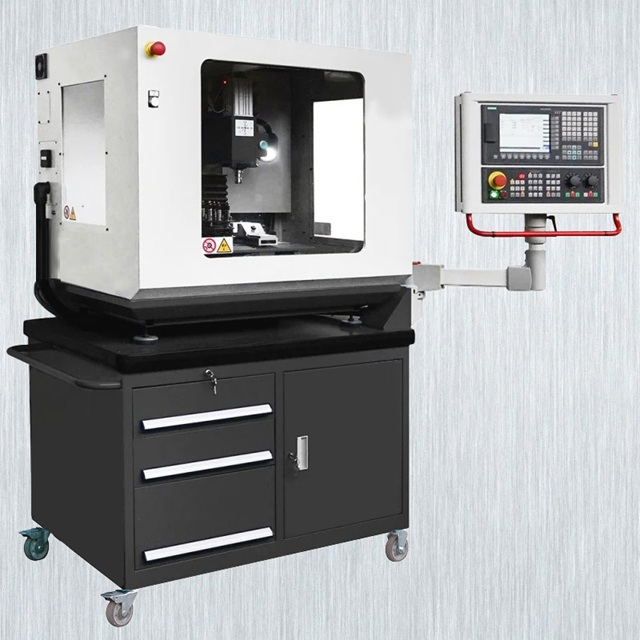

MM-LabCenter 260

Control System :

SIEMENS 808D Advanced (new version)

Machine Data

Table Dimensions :

400 X 145 mm

Table Load Capacity :

20 KGS

Spindle Taper :

ISO 20

Spindle Speed :

100 — 5000 RPM

T-slots (number / width / distance) :

3 piece X 12 mm X 40 mm

Spindle nose-to-table surface distance :

60 — 240 mm

Spindle axis to column surface distance :

200 mm

Travels

Travel X-axis :

260 mm

Travel Y-axis :

152 mm

Travel Z-axis :

180 mm

Feed

Rapid Feed X / Y / Z-axis :

2000 / 2000 / 2000 mm /min

Cutting Feed X / Y / Z-axis :

500 mm / min

Feed Motor X / Y / Z-axis :

2.2 Nm / 2.2 Nm / 2.2 Nm  (Servo Motor)

Accuracy

Positioning Accuracies :

± 0.015 mm

Repeat Positioning Accuracies :

± 0.010 mm

Tooling

Number of tool stations :

4 pieces

Max. Tool  Size  X  Max. tool length :

10 mm (diameter) X 110 mm (length)

Max. tool weight :

0.5 KGS

Tool of tool changing :

10 sec

Drive Capacity

Main Motor :

1000W

Connecting Voltage :

Three Phase 400V

Pneumatic Supply :

0.6 MPA

Gross  Weight :

480 KGS

Packing  Size :

1480 X 980 X 1880 mm

Standard  Accessory :

SIEMENS 808D Advanced Control System, Machine Base,

4-station Automatic Tool Changer, Pneumatic Door,

Ball Screws for all Axis, Central lubrication,

Machine Lamp, Tools and Toolbox
