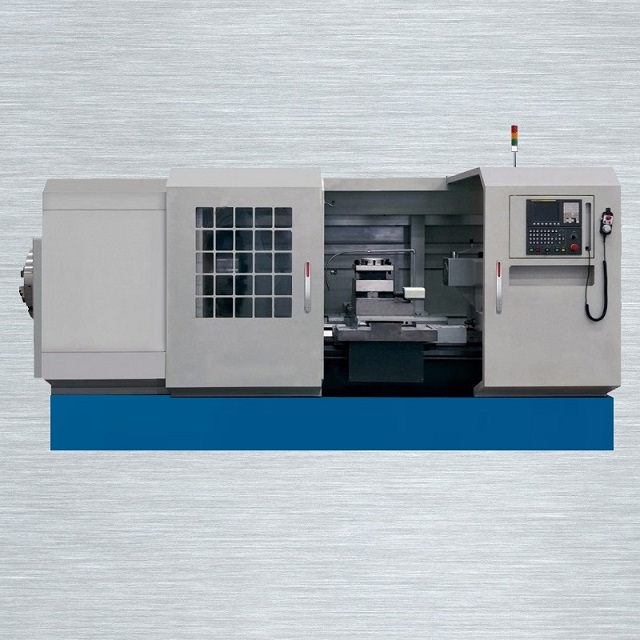

CNC Oil Country Lathe
SIEMENS / FANUC / GSK
1000 to 1400 mm
8000 mm
22 KW
390 to 640 mm
Main Feature
Convincing Arguments: Quality, Efficiency and Price
High Precision CNC-controlled Oil Country Lathe with Machining Lengths up to 8000 mm
Larger Spindle Bore (390 mm diameter) and Max. Swing over Bed 1000 mm
Rigid Machine Bed Width 755 mm and Maximum Load Capacity of Work-piece 6000 KGS
Two Lathe Chuck mounts on both sides allows clamp and process Bigger Tube Pipes
The wide machine bed features Large, High Rigidity, Hardened and ground guide-ways
Massive headstock with main spindle running in tapered roller bearings and 2 lathe chuck mounts
High-torque drives and pre-loaded ball screws on all axes
Infinitely Variable Speed and automatic hardened gears
Hardened and ground gears for effective power transmission
Powerful 22KW main drive motor ensures high cutting power
Heavy-duty 4-station electric tool holder with Automatic Tool Changing function
Including high-performance coolant system and central lubrication unit
Integral Machine Bed for High Rigidity and High Precision
Heavy machine bed made of premium cast-iron with hardened and ground guide-ways
Ultrasonic Frequency Quenched Guide-ways are Enough Rigid for Good Wear-resistance
SIEMENS or FANUC CNC Control System is optional
Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data
Product Name : | Heavy Duty CNC Pipe Threading Lathe Machine | ||
Product Item : | MM-Tube Turn CNC 390 | MM-Tube Turn CNC 520 | MM-Tube Turn CNC 640 |
Bed Type : | Flat Bed | Flat Bed | Flat Bed |
Spindle Bore : | Ø 390 mm | Ø 520 mm | Ø 640 mm |
Maximum Swing over Bed : | Ø 1000 mm | Ø 1200 mm | Ø 1400 mm |
Max. Swing over Cross Slide : | Ø 610 mm | Ø 710 mm | Ø 900 mm |
Distance Between Centers : | 1500 / 3000 / 5000 / 8000 mm | ||
Pipe Threading Range : | Ø 190 — 380 mm | Ø 330 — 510 mm | Ø 330 — 630 mm |
Max. Load of Work-piece : | 6000 KGS | 6000 KGS | 10000 KGS |
Bed Width : | 755 mm | 765 mm | 1100 mm |
Headstock | |||
Spindle Speed Range : | 8 — 205 RPM | 8 — 190 RPM | 2 — 120 RPM |
Lathe Chuck Diameter : | Ø 850 mm | Ø 1000 mm | Ø 1250 mm |
Lathe Chuck Type : | 4-Jaw (Electrical) | 4-Jaw (Electrical) | 4-Jaw (Manual) |
Travels | |||
X-axis Travel : | 520 mm | 520 mm | 750 mm |
Z-axis Travel : | 1350 / 2850 / 4850 / 7850 mm | ||
Rapid Feed X-axis : | 4000 mm / min | 4000 mm / min | 4000 mm / min |
Rapid Feed Z-axis : | 4000 mm / min | 4000 mm / min | 4000 mm / min |
Tooling | |||
Tool Post Type : | 4-station (Electrical) | 4-station (Electrical) | 4-station (Electrical) |
Tool Shank Dimensions : | 40 X 40 mm | 40 X 40 mm | 50 X 50 mm |
Tailstock | |||
Tailstock Taper : | MT 6 | MT 6 | Metric 80 |
Tailstock Quill Diameter : | Ø 160 mm | Ø 160 mm | Ø 260 mm |
Tailstock Sleeve Travel : | 300 mm | 300 mm | 300 mm |
Precision | |||
Repeat Accuracy : | 0.02 mm | 0.02 mm | 0.02 mm |
Positioning Accuracy : | 0.01 mm | 0.01 mm | 0.01 mm |
Drive Capacity | |||
Main Motor : | 22 KW | 22 KW | 37 KW |
Gross Weight : | 13160 KGS | 16850 KGS | 19980 KGS |
Packing Size : | 6680 X 2220 X 2160 mm (for MM-Tube Turn CNC 390 X 3000) 6750 X 2300 X 2200 mm (for MM-Tube Turn CNC 520 X 3000) 7350 X 2500 X 2200 mm (for MM-Tube Turn CNC 640 X 3000) | ||
Standard Accessory : | CNC Control System, Lathe Chuck (two units), 4-station Electric Turret, Coolant System, Machine Lamp, Lubrication System, Tools and Tool box | ||
