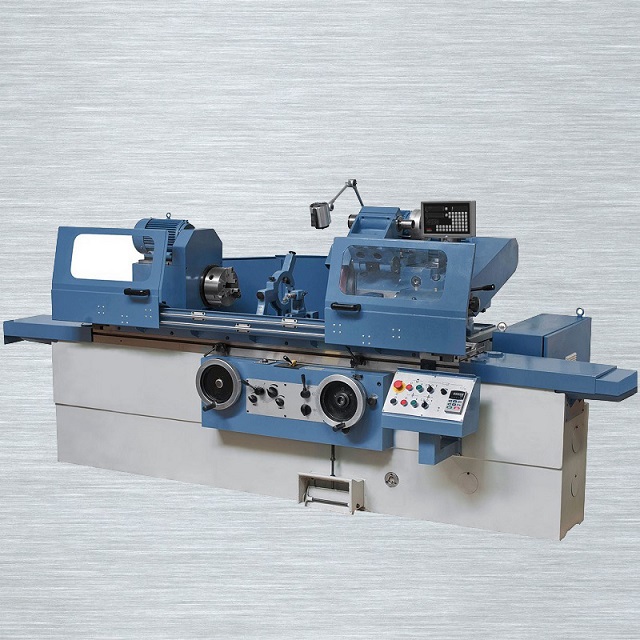

RSM2000C Heavy Duty Universal Cylindrical Grinding Machine with Internal and External Grinding Capacity Ideal for Larger workpieces

Convincing Arguments : Quality, Efficiency and Price

• Internal Grinding and External Grinding

• Maximum Grinding Length 2000 mm, Maximum Grinding Diameter 320 mm

• Maximum Load Work-piece Weight 150 KGS, Center Height 180 mm

• The grinding spindle motor provides up to 7500W power for continuous operation

• Automatic feed in 2 steps – limited by an adjustable stop

• Heavy machine frame to support large workpieces

• Hydrostatic bearings for high surface quality

• Integrated rapid feed on Z-axis with manual return

• Swiveling headstock for conical grinding of short parts

• Wide precision-ground guideways ensure maximum accuracy across the entire workpiece length and accommodate high workpiece weights

• The table features large dimensions and swivels in two directions - table movement via hand-wheel or automatically via linear hydraulic feed

• The grinding spindle features hydrostatic bearings and provides for maximum precision and surface quality, plus extraordinary tool life and rigidity

• The powerful grinding spindle motor is designed for continuous operation

• The robust feed valve allows very precise micro-feed control on the X axis, including a user-adjustable dwell time at the end of the longitudinal table travel

• Automatic feed in 2 steps – limited by an adjustable stop

• Heavy-duty spindle head can swivel to the left and right, the work spindle head also can swivel

• Integrated rapid feed on Z-axis with manual return

• Stepless feed adjustments with selective programmable hold time at the end of each table movement

• Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide

• Certificate of Original (CO, FORM A, FORM E, FORM F)
