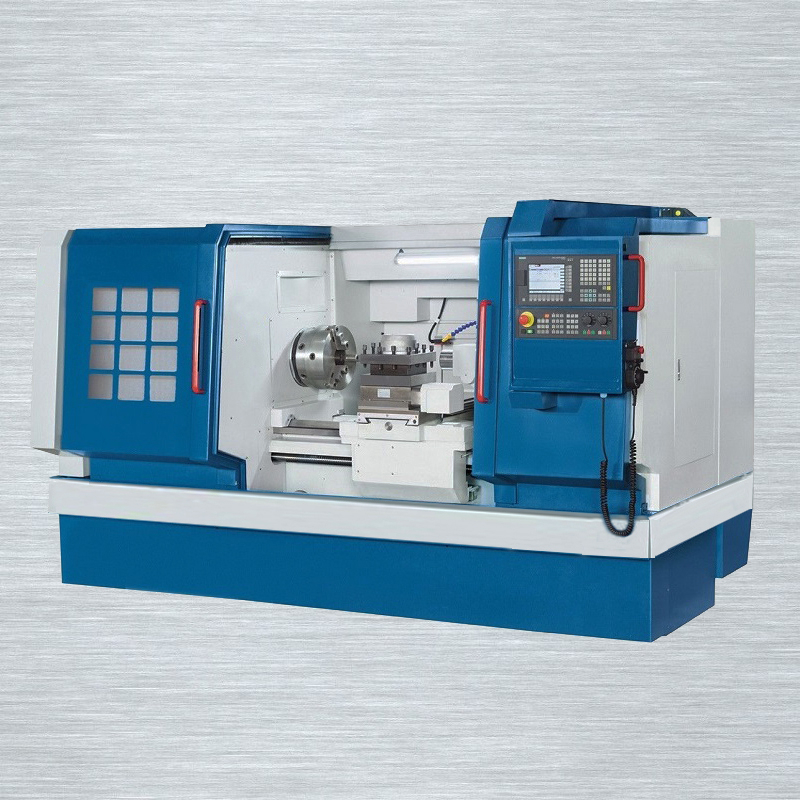

DL-CNC 400

This kind of DL-CNC 400 Robust Flat-bed CNC Lathe which is been made in china ISO9001 factory of MAXNOVO MACHINE with CE Safety Certification. It is characterized by performance, speed, precision and a long service life. Such high precision CNC lathe for high flexibility and easy handing which is perfect for workshops, factories and batch productions .

Availability:

Quantity:



Inquire Add to Basket

Type:
Flat Bed CNC Lathe Machine
Controller:
SIEMENS / FANUC / GSK
Max.Swing Over Bed:
400 mm
Distance Between Center :
1500 mm
Main Motor:
5.5 KW
Spindle Bore :
60 mm

Main Feature

DL-CNC 400 High Precision Flat-Bed CNC Lathe Machine for Excellent Performance, Precision and Long Service Life

Convincing Arguments : Quality, Efficiency and Price

CNC-controlled Flat Bed Lathe Machine
Maximum Swing Over Bed Ø 400 mm
Large spindle bore diameter up to Ø 60 mm
Polished ball screw spindles
Maintenance-friendly protective housing
Safety switch on front sliding door
High-quality preloaded ball screws
Precision workmanship
Braced machine bed made from grey cast-iron
Complex spindle bearing and Emergency-Stop push button
Safety Dual-sliding doors
Hardened and ground slide ways
CNC Controlled lathe machine perfect for industry
Precise machining and central lubrication
Concentricity on the lathe chuck less than 0.04 mm
Easy operation and low maintenance cost
Servo motor for X-axis and Z-axis as standard included
Manual 3-Jaw Chuck as standard included
Manual Tailstock as standard included
Standard 4-position electrical tool post included
Powerful frequency-conversion variable speed main motor as standard included
Stable AC Servo main motor is optional
Automatic Centralized Lubrication System
Electronic Hand-wheel for the X-axis and Z-axis
6-way tool post and 8-way tool post is optional
Hydraulic Lathe Chuck is optional
Hydraulic Tailstock is optional
SIEMENS CNC Control System is optional
Certificate of Original (CO, FORM A, FORM E, FORM F )

DLCNC

Technical Data

Product Name :	High Precision CNC Lathe Machine
Product Item :	DL-CNC 400 X 750	DL-CNC 400 X 1000	DL-CNC 400 X 1500
Bed Type :	Flat Bed	Flat Bed	Flat Bed
Machine Data
Maximum Swing over Bed :	Ø 400 mm	Ø 400 mm	Ø 400 mm
Distance Between Centers :	750 mm	1000 mm	1500 mm
Swing over Cross Slide :	Ø 245 mm	Ø 245 mm	Ø 245 mm
Spindle Bore :	Ø 60 mm	Ø 60 mm	Ø 60 mm
Bed Width :	330 mm	330 mm	330 mm
Headstock
Spindle Taper:	MT6	MT6	MT6
Spindle Speed :	150-2500 RPM	150-2500 RPM	150-2500 RPM
Steps of Spindle Speed :	Variable Speed	Variable Speed	Variable Speed
Travel
Max. Travel of X-Axis :	250 mm	250 mm	250 mm
Max. Travel of Z-Axis :	750 mm	1000 mm	1500 mm
Rapid Speed of X-Axis :	6000 mm /min	6000 mm /min	6000 mm /min
Rapid Speed of Z-Axis :	8000 mm /min	8000 mm /min	8000 mm /min
Tailstock
Tailstock Taper :	MT4	MT4	MT4
Tailstock Quill Stroke :	120 mm	120 mm	120 mm
Tailstock Quill Diameter :	Ø 55 mm	Ø 55 mm	Ø 55 mm
Max. Size of Tool Post :	25 X 25 mm	25 X 25 mm	25 X 25 mm
Nos. of Tool Position :	4 /6 /8 (optional)	4 /6 /8 (optional)	4 /6 /8 (optional)
Precision
Repeat Positioning Accuracy :	0.008 mm	0.008 mm	0.008 mm
Min Setting Unit (X-/Y-axis) :	0.001 / 0.001 mm	0.001 / 0.001 mm	0.001 / 0.001 mm
Drive Capacity
Main Motor :	5500W	5500W	5500W
Coolant Motor :	120W	120W	120W
Connection Voltage :	Three Phase 400V voltage
Gross Weight :	1960 KGS	2280 KGS	2670 KGS
Packing Size :	1750 X 1550 X 2100 mm ( For DL-CNC 400 X 750 ) 2660 X 1600 X 2100 mm ( For DL-CNC 400 X 1000 ) 2950 X 1650 X 2100 mm ( For DL-CNC 400 X 1500 )
Standard Accessory :	GSK CNC Control System, 3-Jaw Chuck, Automatic 4-station tool changer, Lubrication System, Inverter Spindle Main Motor, Coolant System, Work Lamp, Machine Feet, Tools and Tool-box
