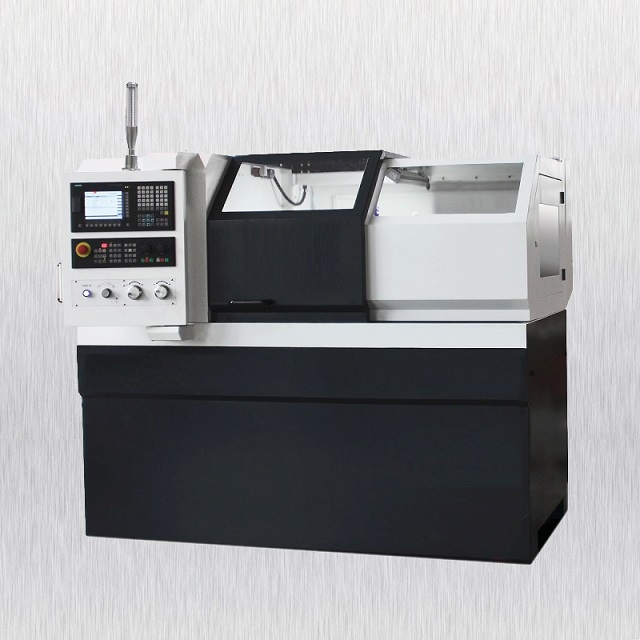

Flat Bed CNC Lathe
SIEMENS
350 mm
600 mm
3.7 KW
46 mm
Main Feature
Convincing Arguments : Quality, Efficiency and Price
Maximum Swing Over Bed is Ø 350 mm
High precision CNC-controlled Flat Bed Lathe Machine
Precise Workmanship
Spindle and Servo Motors by SIEMENS
Braced machine bed made from grey cast-iron
Maintenance-friendly protective housing
Ground ball screw spindles
Complex spindle bearing
Linear guides on both axes
Emergency Stop Button
Central Lubrication
Access flap on rear for maintenance
Safety switch on front sliding door
Turret located behind the lathe centre
SIEMENS 808D Advanced CNC Control System
Certificate of Original (CO, FORM A, FORM E, FORM F )
Technical Data
Product Name : | High Precision CNC Lathe Machine |
Product Item : | MM-L34 HS |
Bed Type : | Flat Bed |
Control System : | SIEMENS 808D Advanced |
Machine Data | |
Maximum Swing over Bed : | Ø 350 mm |
Distance Between Centers : | 600 mm |
Swing over Cross Slide : | Ø 146 mm |
Spindle Bore : | Ø 46 mm |
Bed Width : | 208 mm |
Headstock | |
Spindle Taper: | ISO 702-1 No.4 form A2 |
Spindle Speed : | 30--3500 RPM |
Steps of Spindle Speed : | Variable Speed |
Nos. of Tool Position : | Electrical 6-station |
Max. Size of Tool Post : | 16 X 16 mm |
Lathe Chuck : | Ø 160 mm |
Travel | |
Max. Travel of X-Axis : | 185 mm |
Max. Travel of Z-Axis : | 540 mm |
Rapid Speed of X-Axis : | 6000 mm /min |
Rapid Speed of Z-Axis : | 8000 mm /min |
Tailstock | |
Tailstock Taper : | MT3 |
Tailstock Quill Stroke : | 120 mm |
Tailstock Quill Diameter : | Ø 45 mm |
Precision | |
Repeat Accuracy : | 0.01 mm |
Positioning Accuracy : | 0.01mm |
Drive Capacity | |
Main Motor : | 3700 W |
Coolant Motor : | 95 W |
Connection Voltage : | Three Phase 400V voltage |
Gross Weight : | 1200 KGS |
Packing Size : | 1950 X 1475 X 1956 mm |
Standard Accessory : | CNC Control System, Automatic 6-station tool changer, 3-Jaw Chuck, Main Motor, Coolant System, Tools and Tool-box |
