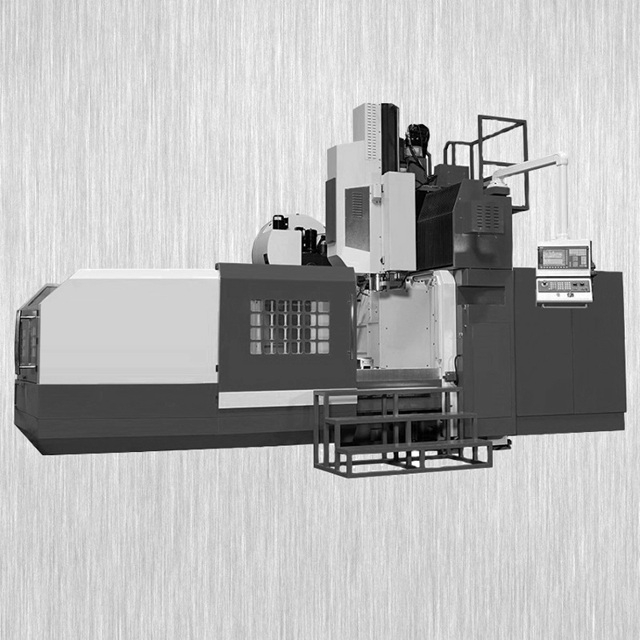

High Precision FP2014 Double Column CNC Gantry Type Milling Machining Center with Fixed Gantry and Movable Table 2000X1200 mm,  Perfect for Machining of Large and Heavy Duty Work-pieces up to 4 Tons

Excellent Precision, Solid Design, Effectiveness and Efficiency

• The Movable Work Table and Fixed Gantry allow Machining of Large Heavy Workpieces

• Double-Column Structure Ensures Stable Precision and Rigidity

• Rigid Work Table 2000 X 1200 mm and Maximum Loading Capacity 4000 KGS

• Maximum Travel for X-/Y-/Z-axis is 2100 /1400 /800 mm

• Roller Type Linear Guides in X-/Y-axis and Rectangular Guides in Z-axis ensures precision

• Perfect Structures and Rugged Design Guarantee best Rigidity and Stability

• All Guide Rails are Tempered and Ground (HRC 50)

• Generously dimensioned Guides on the X, Y and Z axes

• The X- and Y-axis are equipped with Roller Linear Guides so that these axes can move with the highest precision even at high speed

• The Highest Machining Accuracy and High Damping due to wide Box way guides of the Z-axes for high machining performance with high spindle output torque

• Hardened and Precision Ground Ball Screws Mounted in high precision bearings in all three axes for high rapid traverse speeds

• High quality MEEHANITE cast iron for main components - machine bed, worktable, column and etc

• Double Column Structure ideal for Heavy-duty Machining and Maintains Good Rigidity

• Large Sliding Doors in the machine enclosure for great accessibility and easy tooling

• Larger Working Area

• Rigid Fixed Portal

• Higher Workpiece Weight

• Quick-action Tool Changer

• Combination of Linear Guides and Box Way ensures Long Service Life and Excellent Rigidity

• 24-Station Automatic Tool Changer is included

• SIEMENS and FANUC CNC Control System is Optional

• Certificate of Original (CO, FORM A, FORM E, FORM F)
