5-Axis Machining Center
SIEMENS / FANUC / GSK
650 mm
700 mm
450 mm
400 mm
15 KW
Main Feature
Convincing Arguments: Quality, Efficiency and Price
• Cradle Type 5-Axis Simultaneous Rotary Table
• Powerful Main Spindle with speeds up to 12000 RPM
• High Precision Linear Guides on all Axes
• High-torque Servo-Drives on all Axes
• Precision Ground, Pre-load, High-Performance Ball Screws on all Axes
• High Rigidity of Machine Body ensures Excellent Quality and Longer Life
• Heavy Duty Version
• High Productivity
• Disc Type Automatic Tool Changer with 24-Stations
• Automatic Chip Conveyor ensures efficient chip discharge
• Automatic Central Lubrication System
• Telescopic Guide-way Cover
• Large Pre-loaded Bearings ensure radial stability during heavy-duty machining operations
• Machine Lamp in Work Space
• Large, Surface Treated, Solid Machine Structure
• EMC Electromagnetic Compatibility
• FANUC CNC Control System is optional
• Certificate of Original (CO, FORM A, FORM E, FORM F)

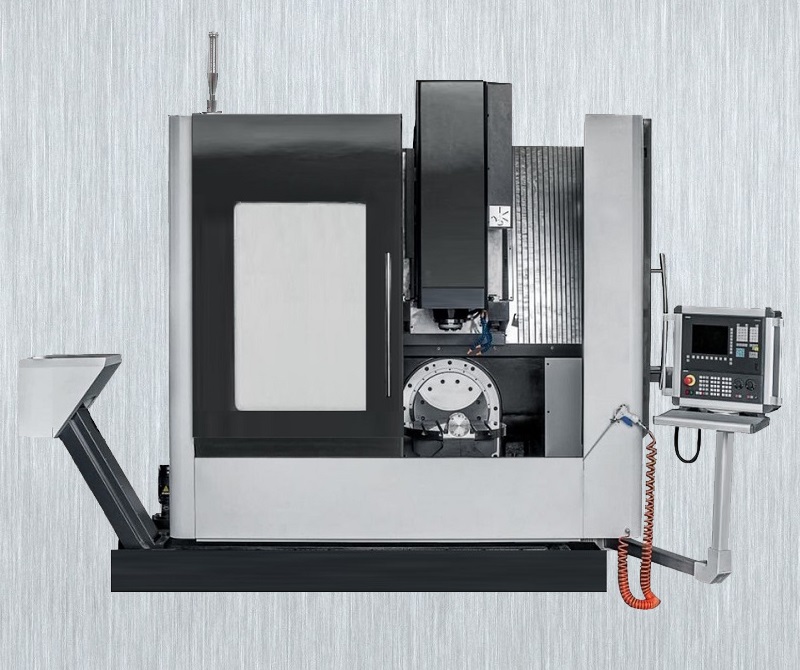

CNC 5-Axis Simultaneous Machining Center with SINUMERIK 840D SL
Technical Data
Product Name : | High Precision 5-Axis Simultaneous Machining Center |
Product Item : | MM-FU5 PRO |
Control System : | SIEMENS 840D SL |
Machine Data | |
Table Size : | Ø 650 mm |
Table Load Capacity : | 300 KGS |
Spindle Speed : | 12000 RPM |
Spindle Drive Method : | Direct Connection |
Spindle axis-to-table surface Distance : | 200 — 600 mm |
Spindle Taper : | BT40 |
T-slots (number / width / distance) : | 7 piece X 18 mm X 100 mm |
Travels | |
X-axis Travel : | 700 mm |
Y-axis Travel : | 450 mm |
Z-axis Travel : | 400 mm |
B-axis Rotating Swivel Angle : | ± 110 deg. |
C-axis Rotating Swivel Angle : | 360 deg. |
Feed | |
Rapid Feed (X / Y / Z-axis) : | 24 / 24 / 24 m /min |
Cutting Feed (X / Y / Z-axis) : | 10 / 10 / 10 m /min |
Max. Rotating Speed (B / C-axis) : | 50 / 100 RPM |
Max. Torque (X / Y / Z / B / C-axis) : | 20 / 20 / 27 / 1830 / 571 Nm |
Precision | |
Positioning Accuracy : | ± 0.005 mm |
Repeating Accuracy : | ± 0.003 mm |
Tool Changer | |
Tool Magazine Type : | Disc Type |
Number of Tools : | 24 Tools |
Tool Size X Length (Max.) | Ø 80 — Ø 150 mm X 300 mm |
Max. Tool Weight : | 8 KGS |
Tool Change Time : | 2 seconds |
Drive Capacity | |
Main Motor : | 15 KW |
Gross Weight : | 11580 KGS |
Packing Size : | 4980 X 3410 X 3110 mm |
Standard Accessory : | Siemens CNC Control System, 24-station Tool Changer, Rotating Table, Chip Conveyor, Lubrication System, Coolant system, Machine Lamp, Tools and Tool-box |
