Radial Drill Press has Touch-screen
750 X 500 X 500 mm
60 mm (in steel)
2000 RPM
350 mm
4 KW
Main Feature
Convincing Arguments: Quality, Efficiency and Price
Maximum Drilling Capacity in steel is 60 mm
Electronically Controlled Servo Quill Feed with Large Touch Screen Display

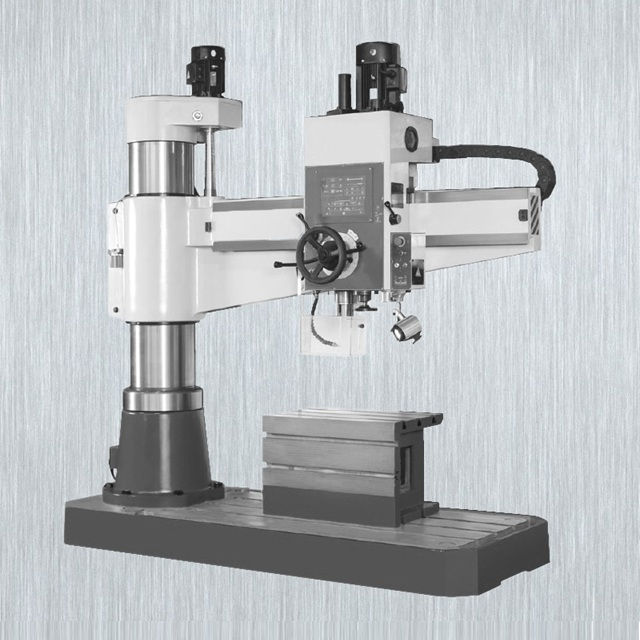

Servo-Conventional Radial Drilling Machine with Large Touchscreen and Advanced Function
Large Touchscreen for all settings, such as speed, drilling, thread cutting, height adjust and etc.
The Quill Feed takes place by Advanced Servo Motor
Electronically Adjustable Drill Depth includes checking of input value
Complete with stepless speed, to set speed is visible on digital display
Measuring units for input and display can be selected by the operator (mm or inch)
Base, Column, Boom and Gear head are made of premium high-quality cast
Servo Motor-driven Quill Feed
Drilling Depth is Electronically Set and the Input Value is checked by the system
Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
Drill head and column can be clamped or released together or separately
Guiderails on radial arm are hardened and polished
Rigid Design with Proven High Stability
Boom can be moved vertically without losing the spindle-to-bore alignment
Coolant System enabled at the Touchscreen and can turn on and off as function of main spindle
It has 2 gear steps, and the RPM can be infinitely varied and displayed at the monitor
Control Software provides recommendations for RPM and Feed in relation to desired drill size
Counter weight on spindle to ensure optimal balance
Ideal for Drilling, Countersinking, Reaming and Tapping
Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data
Product Name : | High Precision Radial Drilling Machine with Large Touch Screen | |
Product Item : | MM—R60 VTP | MM—R80 VTP |
Max. Drilling Capacity (in steel) : | Ø 60 mm | Ø 80 mm |
Max. Drilling Capacity (in cast iron) : | Ø 70 mm | Ø 105 mm |
Max. Tapping Capacity (in cast iron) : | M 50 | M 60 |
Max. Tapping Capacity (in steel) : | M 45 | M 52 |
Max. Drilling Depth : | 315 mm | 400 mm |
Clamping Type : | Hydraulic | Hydraulic |
Working Area | ||
Cube Table Dimensions : | 750 X 500 X 500 mm | 850 X 580 X 500 mm |
Throat (Distance spindle-to-column) : | 350 — 1600 mm | 465 — 2550 mm |
Spindle nose-to-table surface Distance : | 350 — 1250 mm | 360 — 1560 mm |
Drill Head Travel (Horizontal) : | 1250 mm | 2095 mm |
Arm Stroke (Vertical) : | 585 mm | 800 mm |
Column Diameter : | Ø 350 mm | Ø 450 mm |
Headstock | ||
Spindle Speed Range : | 38 — 2000 RPM | 30 — 1400 RPM |
Spindle Speed Steps : | Infinitely Variable Speed | Infinitely Variable Speed |
Spindle Mount : | MT5 | MT6 |
Feed | ||
Spindle Feed Range : | 0 — 300 mm / Rev | 0 — 350 mm / Rev |
Drive Capacity | ||
Main Motor : | 4000 W | 7500 W |
Stroke Motor : | 1500 W | 2600 W |
Connecting Voltage : | Three Phase 400V | Three Phase 400V |
Measures and Weights | ||
Machine Dimensions : | 2490 X 1050 X 2780 mm | 3590 X 1250 X 3560 mm |
Packing Size : | 2630 X 1180 X 2530 mm | 3780 X 1400 X 2270 mm |
Gross Weight : | 3950 KGS | 7560 KGS |
Standard Accessory : | Touch Screen Control Panel, Servo Motor for Spindle Feed, Cube Table, Work Lamp, Coolant system, Hydraulic Motor, Lifting Motor, Tools and Toolbox | |
