MM-DLE 1000B

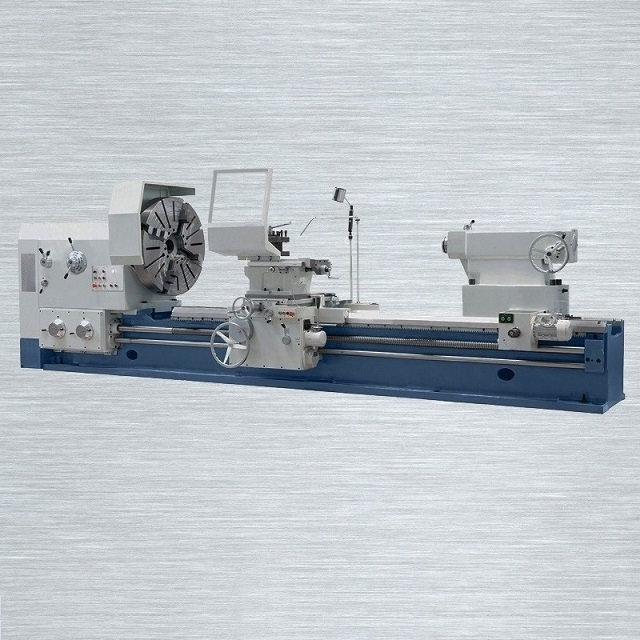

This kind of MM-DLE1000B series is high precision Universal Heavy duty Metal Engine Lathe which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such heavy-duty lathe has Larger Machine Bed width 1100 mm, Maximum Swing Over Bed 1980 mm diameter, Big Spindle Bore diameter 130 mm, Maximum Loading Weight of work-pieces 15 Tons and the Center Widths up-to 16000 mm.

Availability:

Quantity:



Inquire Add to Basket

Type:
Heavy Duty Universal Lathe
Max.Swing Over Bed:
1980 mm
Distance Between Center :
16000 mm
Main Motor:
30 KW
Spindle Bore :
130 mm
Bed Width:
1100 mm

Main Feature

MM-DLE 1000B Heavy Duty Universal Lathe Machine with Maximum Loading Capacity Work-piece 15 Tons. Larger Machine Bed, Big Spindle Bore, Large Turning Diameter and Maximum Stability and High Accuracy for Roughing and Finishing Operations.

Convincing Arguments: Quality, Efficiency and Price

Maximum Loading Weight of Work-piece 15 Tons
Maximum Swing over Bed Ø 1980 mm
Larger Rigid Machine Bed Width 1100 mm
30KW Powerful Main Motor ensures high cutting power
1500W tailstock motor maximum convenient
Extra heavy, wide machine bed with heavy ribbing construction
Induction hardened and ground guide-ways
Large Spindle Bore (Ø 130 mm diameter)
Very quiet operating at maximum spindle speed
Large Spindle Bearings
Rapid feed for X and Z axis allow quick support positioning and less down-time
Sturdy multi-disk clutch for headstock drive
More accuracy and Lower error rate
Overload clutch enclosed in apron
Heavy-duty cast-iron body with ribbed bed reduces vibrations to a minimum
The auxiliary gearbox features a wide spectrum of diametric, inch, module threads
3-axis digital position indicator is Optional Spare Part
Certificate of Original (CO, FORM A, FORM E, FORM F )

Technical Data

Product Name :	Heavy Duty Universal Lathe Machine
Product Item :	MM-DLE 810B	MM-DLE 850B	MM-DLE 1000B	MM-DLE 1050B
Max. Weight of Work-piece :	15 Tons	15 Tons	15 Tons	15 Tons
Maximum Swing over Bed :	Ø 1480 mm	Ø 1680 mm	Ø 1980 mm	Ø 2080 mm
Max. Swing over Gap Bridge :	Ø 1800 mm	Ø 2000 mm	Ø 2300 mm	Ø 2400 mm
Max. Swing over Cross Slide :	Ø 1050 mm	Ø 1250 mm	Ø 1500 mm	Ø 1650 mm
Distance Between Centers :	3000 /4000 /5000 /6000 /8000 /10000 /12000 /14000 /16000 mm
Bed Width :	1100 mm
Swing range of Top Slide :	± 180 degree
Headstock
Spindle Bore :	Ø 130 mm
Spindle Taper :	Ø 140 mm
Spindle Speed Range :	3.15—315 RPM or 2—200 RPM or 2.5—250 RPM (21 kinds)
Tapping Capacity
Pitch-Metric in range of :	1—120 mm (44 kinds)
Pitch-Inch in range of :	1/4—24 (31 kinds)
Module Threads Range :	0.5—60 mm (45 kinds)
Diameter Threads Range :	1/2—56 DP (38 kinds)
Longitudinal feed Range :	0.1—12 mm/rev (56 kinds)
Transverse feed Range :	0.05—6 mm/rev (56 kinds)
Rapid Feed X-axis :	1700 mm / min
Rapid Feed Z-axis :	3400 mm / min
Travel of Top slide :	280 mm
Travel of Cross slide :	860 mm
Tool Shank Dimensions :	45 X 45 mm
Tailstock
Tailstock Taper :	Metric 80
Tailstock Quill Diameter :	Ø 280 mm
Tailstock Sleeve Travel :	300 mm
Drive Capacity
Main Motor :	30 KW
Rapid Feed Motor :	1.5 KW
Tailstock Motor :	1.5 KW
Packing Type :	Export Type Pallet Packing
Gross Weight :	22300 KGS (for MM-DLE 1000B X 5000)
Packing Size :	8350 X 2200 X 2450 mm (for MM-DLE 1000B X 5000)
Standard Accessory :	4-Jaw Chuck, Oil Gun, Center, Main Spindle Center, Spindle Center Sleeve, Tailstock Centre, Tools and Tool box
