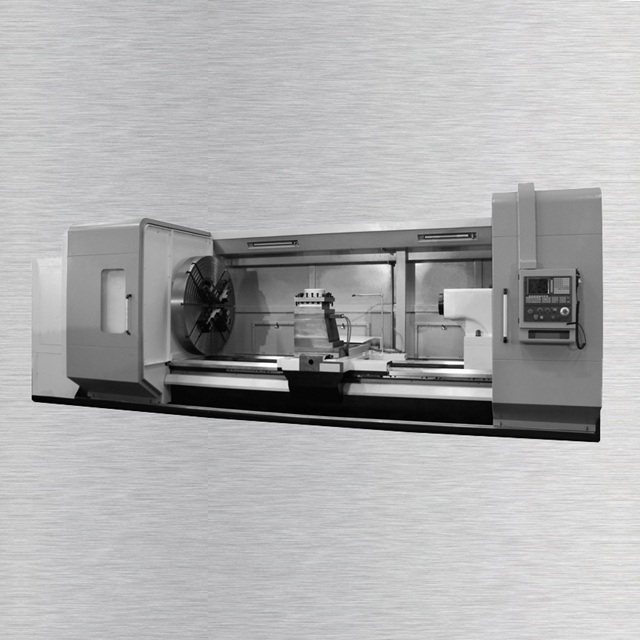

Extra Heavy Duty CNC Lathe
20 Tons
2100 mm
20000 mm
45 KW
130 mm
Main Feature
Convincing Arguments : Quality, Efficiency and Price
Maximum Load Work-piece Weight is 20 Tons
Maximum Swing Over Bed is up Ø 2100 mm
Solid Guideway Width is 1100 mm
Large Spindle Bore diameter up to Ø 130 mm
CNC Controlled Lathe Machine ideal for heavy industry
4-position Electrical Tool-Post as standard included
Motorized Tailstock
SIEMENS or FANUC or GSK or FAGOR CNC Control System is optional
Precise Machining and Central Lubrication
Longitudinal feed and Cross feeds by servo motor drive through ball screws
Maintenance-friendly protective housing
Central Lubrication System
High precision frequency hardened guide-ways ensure more precision and longer working life
Easy Operation and Conveniently Maintenance
Complex Spindle Bearing
Safety Sliding Doors
Hardened and ground slide ways
High-quality preloaded ball screws
Braced machine bed made from grey cast-iron
Powerful 45 KW main motor as standard included
Certificate of Original (CO, FORM A, FORM E, FORM F)
Technical Data
Product Name : | Heavy Duty CNC Lathe Machine | |||
Product Item : | DLE–CNC 1500B | DLE–CNC 1700B | DLE–CNC 1900B | DLE–CNC 2100B |
Bed Type : | Flat Bed | Flat Bed | Flat Bed | Flat Bed |
Maximum Load Work-piece : | 20 Tons | 20 Tons | 20 Tons | 20 Tons |
Bed Width : | 1100 mm | 1100 mm | 1100 mm | 1100 mm |
Machine Data | ||||
Maximum Swing Over Bed : | Ø 1500 mm | Ø 1700 mm | Ø 1900 mm | Ø 2100 mm |
Max. Swing Over Cross Slide : | Ø 1050 mm | Ø 1250 mm | Ø 1450 mm | Ø 1650 mm |
Distance Between Centers : | 3000 /4000 /5000 /6000 /8000 /10000 /12000 /16000 /18000 /20000 mm | |||
Maximum Cutting Length : | 2800 /3800 /4800 /5800 /7800 / 9800 /11800 /15800 /17800 /19800 mm | |||
Headstock | ||||
Spindle Bore : | Ø 130 mm | |||
Spindle Taper : | Metric 140 | |||
Spindle Speed : | 2 — 200 RPM | |||
Spindle Speed Steps : | 4 steps | |||
Tooling Turret | ||||
Tool Post Station : | 4-Station Electric Turret (6 or 8-station is Optional) | |||
Max. Size of Tool Shank : | 50 X 50 mm | |||
Travel | ||||
Max. Travel X-axis : | 750 mm | 750 mm | 850 mm | 850 mm |
Max. Travel Z-axis : | 2850 /3850 /4850 /5850 /7850 /9850 /11850 /15850 /17850 /19850 mm | |||
Rapid Feed X-axis : | 4000 mm /min | |||
Rapid Feed Z-axis : | 6000 mm /min | |||
Tailstock | ||||
Tailstock Taper : | Metric 80 | |||
Tailstock Quill Diameter : | Ø 280 mm | |||
Tailstock Quill Stroke : | 300 mm | |||
Working Precision | ||||
Workpiece Accuracy : | IT 6 – 7 | |||
Surface Roughness : | Ra 2.5 – 3.2 μm | |||
Drive Capacity | ||||
Main Motor : | 45 KW | |||
Packing Type : | Export Type | |||
Gross Weight : | 27350 KGS ( For DLE–CNC 2100B X 8000 ) | |||
Packing Size : | 12750 X 2290 X 2600 mm ( For DLE–CNC 2100B X 8000 ) | |||
Standard Accessory : | CNC Control System, 4-Jaw Lathe Chuck, 4-Position Electrical Turret, Lubrication System, Coolant System, Machine Lamp, Tools and Toolbox | |||
